The EPW 6565 Projector wall solution enables a flexible and stylish wall mount for your projector. Simply attach the projector at the desired position and then lock it in place. The included universal EPA 6505 Projector connector fits almost all projectors weighing up to 10 kg. The Easy Connect feature makes the solution compatible with Vogel’s Click & Switch system.

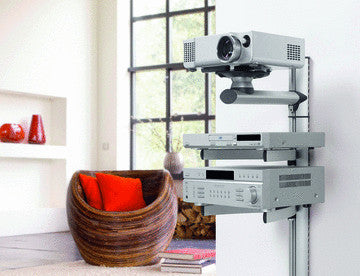

Now you can mount your projector against the wall. The flexible horizontal arm offers various placement options. Thanks to the reversible mounting option of the arm, you can attach your projector either upright or upside down for the best projection at any desired height. Whatever size your projector is, the adjustable arm ensures hassle-free placement, both horizontally (for the ideal distance from the wall) and vertically (for the ideal height). The unique spherical hinge joint gives the projector great freedom of movement, allowing you to achieve the desired projection image. With Adjust & lock, you can secure the projector’s position afterward. The cable is easily hidden and guided at any desired height thanks to the patented AdvanCISTM cable management system. When the projector is not in use, you can easily remove the projector and horizontal arm with one click. To prevent theft, the EPW 6560 can also be equipped with a universal padlock. The EPW 6565 includes the complete wall solution, consisting of the EPA 6505 Projector connector and the EPW 6560 Wall module.

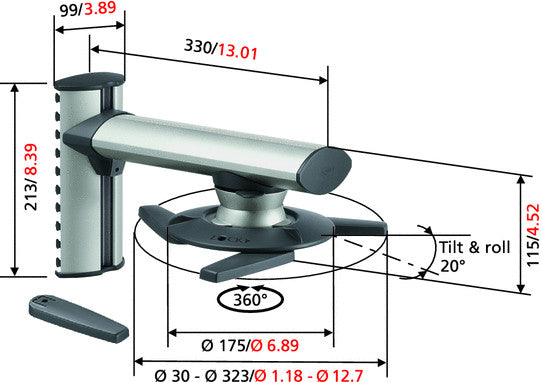

Specifications:
|
Standard color:
|
Silver/anthracite
|
|
Swivel:
|
360 °
|
|
Tilt:
|
20 °
|
|
Maximum weight:
|
10 kg
|
|
Max. depth:
|
600 mm
|
|
Number of pivot points:
|
1
|
|
Min. distance to wall:
|
0 mm
|
|
Max. distance from the wall:
|
300 mm
|
|
CIS®:
|
-
|
|
AdvanCIS™
|
Present
|
|
SPS™ (Screen Protection System):
|
-
|
|
SMM™ (Smart Movement Mechanism):
|
-
|
|
TÜV certificate number:
|
60013207
|
|
Mobile:
|
-
|
|
Remote controlled:
|
-
|
|
Adjustable depth:
|
-
|
|
Key features:
|
Click & switch
|
| |
Tilt, swivel, and roll
|
| |
Easy connection
|
| |
Easy installation
|
| |
Universal
|
| |
Adjust & secure
|
