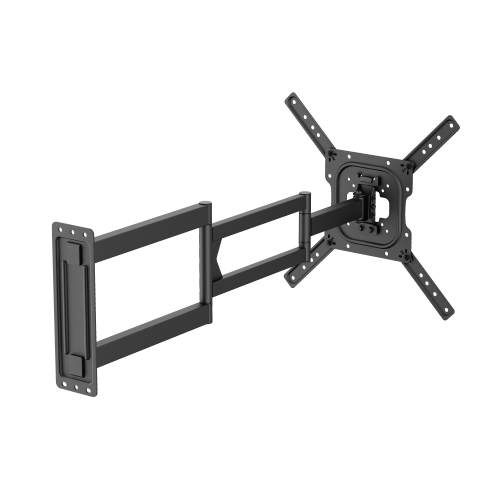

Unique wall mount with 4 pivot points! Compact wall mount with great freedom of movement!
With an extra-long arm reaching up to 94.6cm, the universal TVB-15XL goes that extra mile. The perfect balance between style and functionality. For those who want maximum freedom of movement combined with a sleek design.
Additionally, you now get 10 years factory warranty on this mount.
For more TV mounts, you can check below for other sizes we offer:
Installation instructions VESA 400×300
To correctly mount a screen with a VESA size of 400 × 300 mm on this wall mount, it is important to position the mounting arms (bars/strips) correctly:
-
Top two arms (strips):
Mount these diagonally angled upwards.
This creates the correct distance and position for the lower mounting points.
-
Bottom two arms (bars):
Mount these horizontally.
They form the upper mounting points of the VESA size.
This combination of horizontal and diagonal placement creates exactly the pattern needed for a 400 × 300 mm VESA connection.
Always check after installation:
- That all bolts are tightly secured
- That the screen is level
- That the arms are not under tension
Why choose the TVB-15XL?

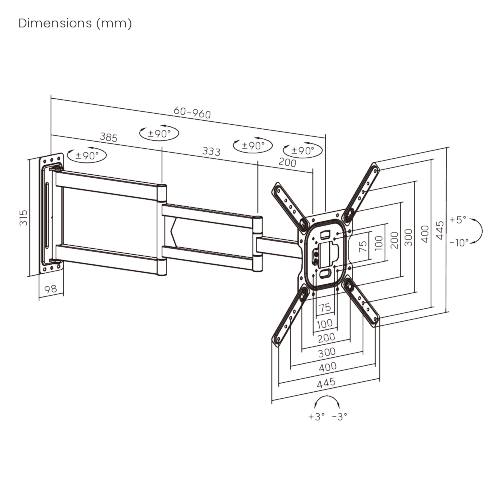

Extra long arm & compact storage: This universal wall mount can extend up to 94.6cm from the wall, allowing you to swivel your TV into almost any position. When folded, the mount is only 5.4cm thick. This ensures a sleek installation when the TV is close to the wall.

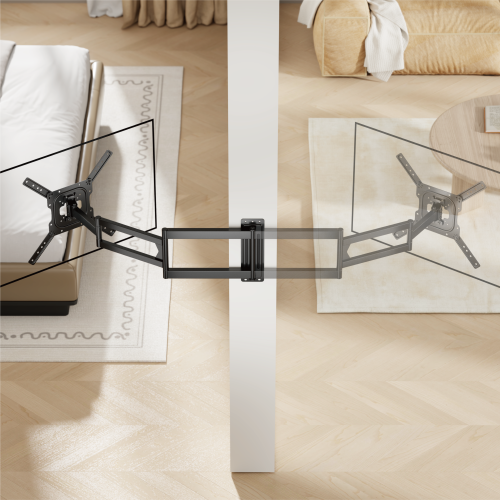

Many pivot points: With no less than 4 pivot points, the TVB-15XL is very flexible. You can position the TV at any angle or position you want, no matter where you sit. Thanks to the smart design and four pivot points, this is an excellent solution to enable you to mount your TV in almost any viewing angle.
Suitable for many screen sizes: This Wolff Mount bracket can be used for screens from 23 to 65 inches. The mount can support up to 35KG. If your TV is close to this weight, we recommend also looking at our TVB-79.
